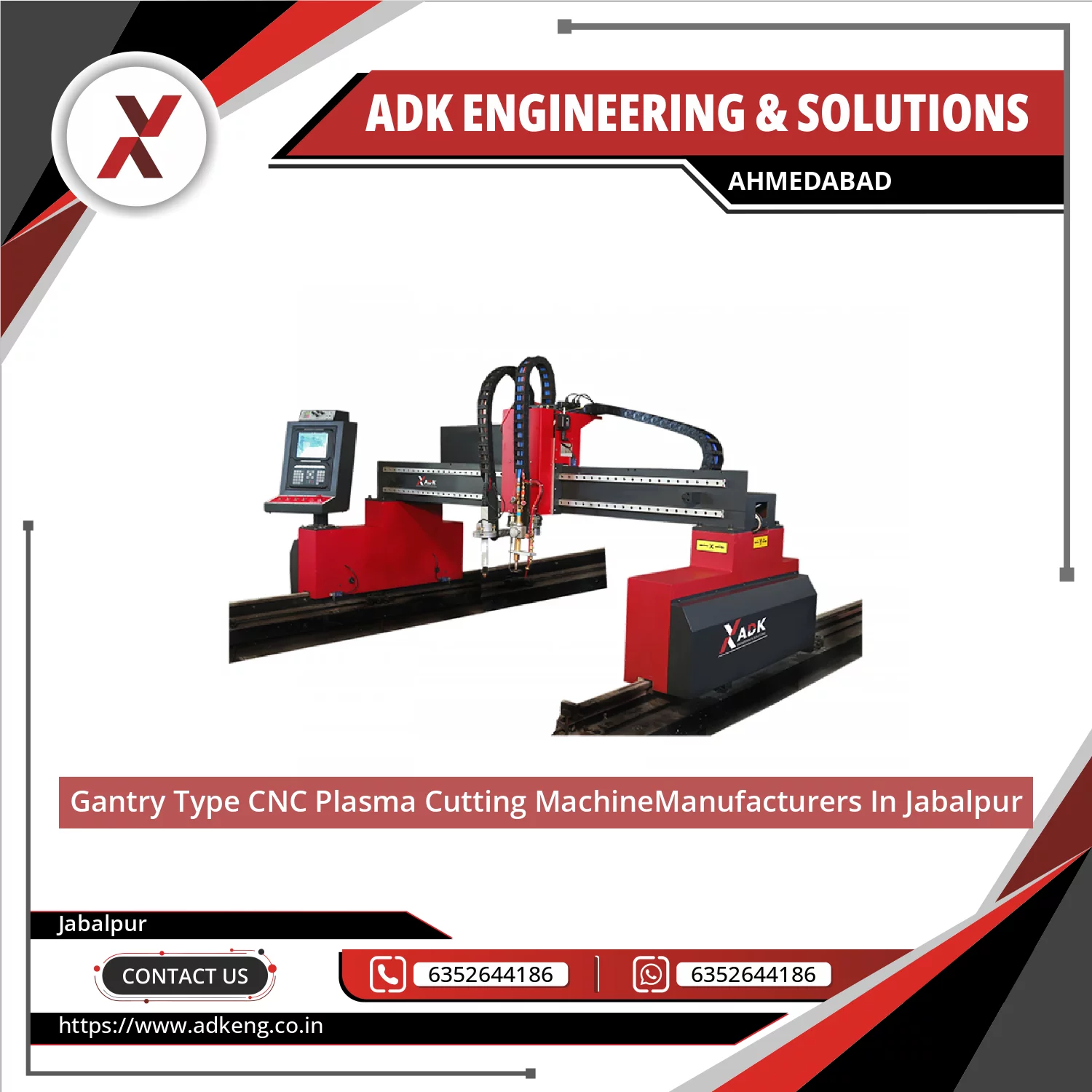

Gantry Type CNC Plasma Cutting MachineManufacturers In Jabalpur

We are offering a high-precision Gantry Type CNC Plasma Cutting Machine specifically built to handle large metal sheets with exceptional flawlessness, speed, and quickness. Ideal for industrial fabrication, automotive, shipbuilding, and heavy machinery applications, this machine combines a rigid gantry structure with advanced CNC control and plasma technology to cut metals such as mild steel, stainless steel, and alloy sheets with minimal heat distortion. Its robust construction, user-friendly interface, and automation capabilities make it perfect for workshops and industrial facilities aiming for consistent quality, higher productivity, and reduced operational costs.

How To Operate a Plasma Cutting Machine

Machine Setup

• Ensure machine is on a stable, level surface.
• Connect power, compressed air, and water-cooling system if required.
• Verify emergency stop buttons and safety interlocks.

Material Preparation

• Clean the metal sheet of oil, rust, or debris.
• Position the sheet securely on the gantry table and align with cutting coordinates.

Program & Parameter Configuration

• Load CAD/CAM cutting files (DXF, DWG, or CNC code).
• Set cutting parameters: current, voltage, cutting speed, torch height, and gas flow.

Trial / Dry Run

• Run a dry cut (without plasma) to verify toolpath accuracy and avoid collisions.

Cutting Operation

• Activate plasma arc and start the cutting process.
• Monitor torch movement, cutting quality, and sparks for safety.

Post-Cutting

• Remove finished parts carefully.
• Inspect edges for smoothness, accuracy, and required tolerances.
• Deburr if necessary for precise finishes.

Shutdown & Maintenance

• Turn off the plasma system and CNC controller.
• Clean machine rails, gantry, and torch.
• Check consumables like electrodes and nozzles for wear.

Proper Logistics & Handling

• Use forklifts or cranes for loading/unloading large sheets.
• Secure machine and components during transport.
• Ensure trained personnel install, calibrate, and test the machine on-site.
