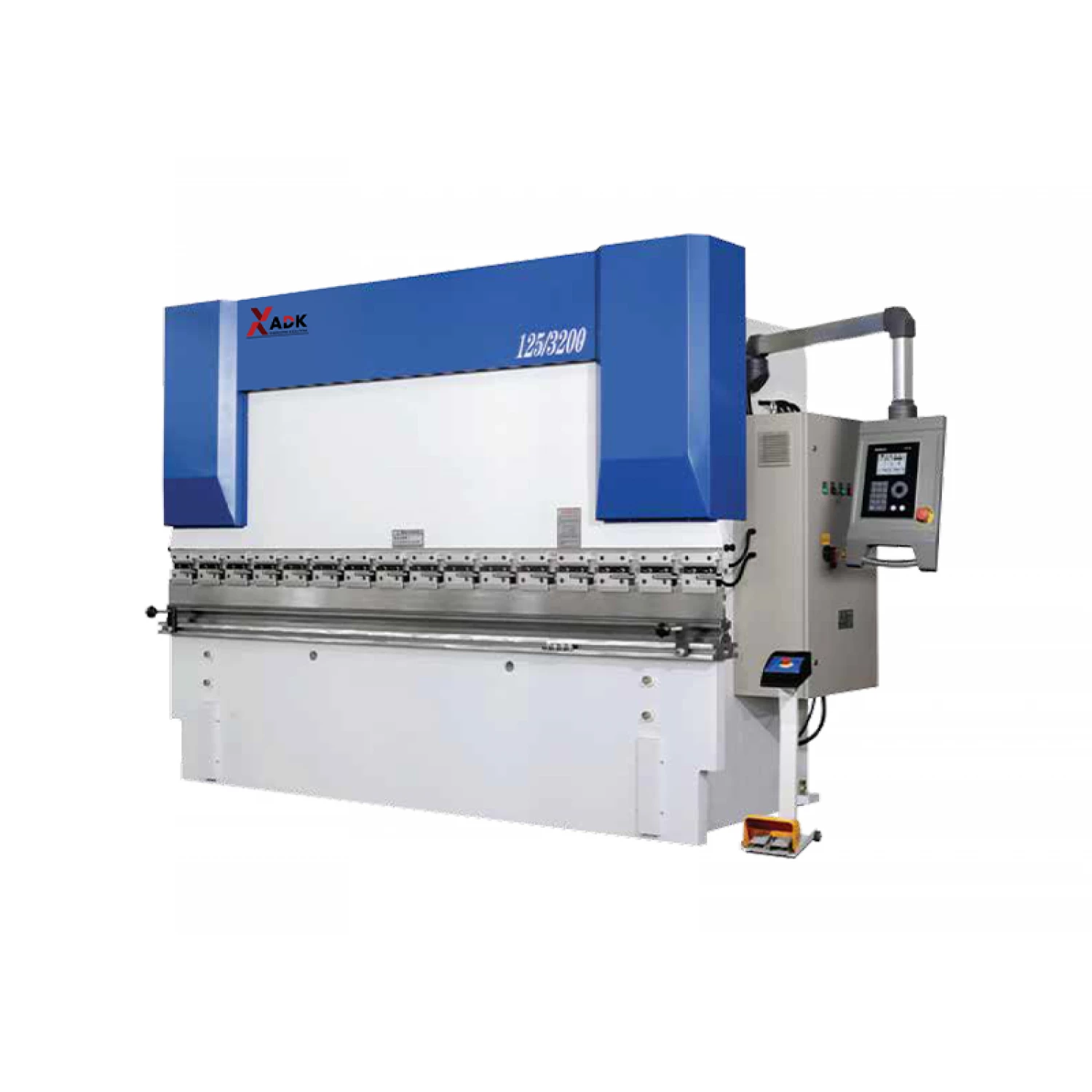

NC Press Brake Details

We take pride in being a trusted manufacturer of NC Press Brake machines, providing reliable and cost-effective solutions for sheet metal bending across various industries. Our NC Press Brake is designed to strike the perfect balance between advanced technology and user-friendliness, ensuring accuracy, durability, and efficiency in every operation.

Equipped with an intuitive numerical control system, a programmable back gauge, and hydraulic precision, our NC Press Brake is the go-to choice for both small and large-scale fabrication projects. Thanks to its user-friendly controls, operators can achieve high-quality bends with less setup time and minimal training. This machine is built to deliver consistent performance, guaranteeing repeatability and accuracy throughout every production cycle.

Constructed on a robust frame with high-strength components, our NC Press Brakes are celebrated for their long service life, low maintenance needs, and reliable operation. They cater to a wide range of applications in industries such as automotive, electrical, construction, furniture, and general engineering, helping manufacturers optimize their production processes while minimizing waste.

We offer our machines in various sizes and capacities, allowing customers to select a model that perfectly fits their bending needs. The combination of hydraulic power, sturdy design, and precise control ensures exceptional productivity and top-notch output.

NC Press Brake

  • The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress.
  • The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment.
  • The controller can control the Yl and Y2 axis (Yl controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram.
  • The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general.
  • CNC press brake machine
  • The press brake adopt the latest high-frequency hydraulic control technology, which is faster, more efficient and more stable.

Technical Parameters

ModelNominal Pressure (kN)Table Length (mm)Distance Between Columns (mm)Throat Depth (mm)Stroke (mm)Open Height (mm)Dimension (LWH) (mm)
40T 1600400160013002501003551900*1200*1900
63T 2500630250020502501203702500*1350*2100
80T 2500800250020502501203802500*1400*2150
110T 32001000320025103201604303200*1500*2300
110T 40001000400031003201604304000*1750*2590
125T 32001250320025103201604303200*1600*2350
125T 40001250400031003201604304000*1600*2450
160T 32001600320025103502004803200*1650*2800
160T 40001600400031003502004804000*1650*2800
200T 32002000320025103502004803200*1650*2800
200T 40002000400031003502004804000*1650*2800
250T 32002500320026004002505803300*2100*3150
250T 40002500400031004002505804000*2100*3150
300T 32003000320026004002505803200*2200*3200
300T 40003000400031004002505804000*2200*3200
400T 32004000320026004002505803300*2400*3200
400T 40004000400031004002505804000*2400*3200
500T 40005000400031005003206204000*2650*3320
500T 60005000600046005003206206000*2700*3320

NC Press Brake

  • The entire EU streamlined design, heat treatment frame, high rigidity workbench, optional mechanical compensation device for precise bending.
  • Hydraulic synchronization control and Estun E21/Estun E200P or Delem DA41s programmable logic controller ensure precise repeatability and ease of use.
  • The integrated hydraulic system (Bosch Rexroth, Germany) can quickly and automatically switch to a slow bend.
  • The X-axis and Y-axis are programmed by the controller and controlled by servo motor to achieve accurate positioning.
  • Advanced variable frequency hydraulic control technology, with more stable, and more reliable operation.
  • NC series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes

Standard Equipment

  • Steel welded frame
  • Hydraulic system (Germany Bosch - Rexroth)
  • Standard two axis control (X,Y) Electrical system (France Schneider)
  • Synchronized dual cylinder
  • X axis servo motorized backgauge, Ball screw and Linear guide
  • Quick clamping (Optional)

Machine Components

  • Controller
  • Backgauge
  • Torque Synchronous Control System

As a leading manufacturer of NC Press Brakes, we are dedicated to delivering machines that offer value, performance, and reliability. With our expertise, innovative spirit, and customer-focused approach, we empower businesses to enhance their efficiency and competitiveness in sheet metal fabrication.

Opt for our NC Press Brake for unparalleled precision, reliability, and long-lasting performance.
