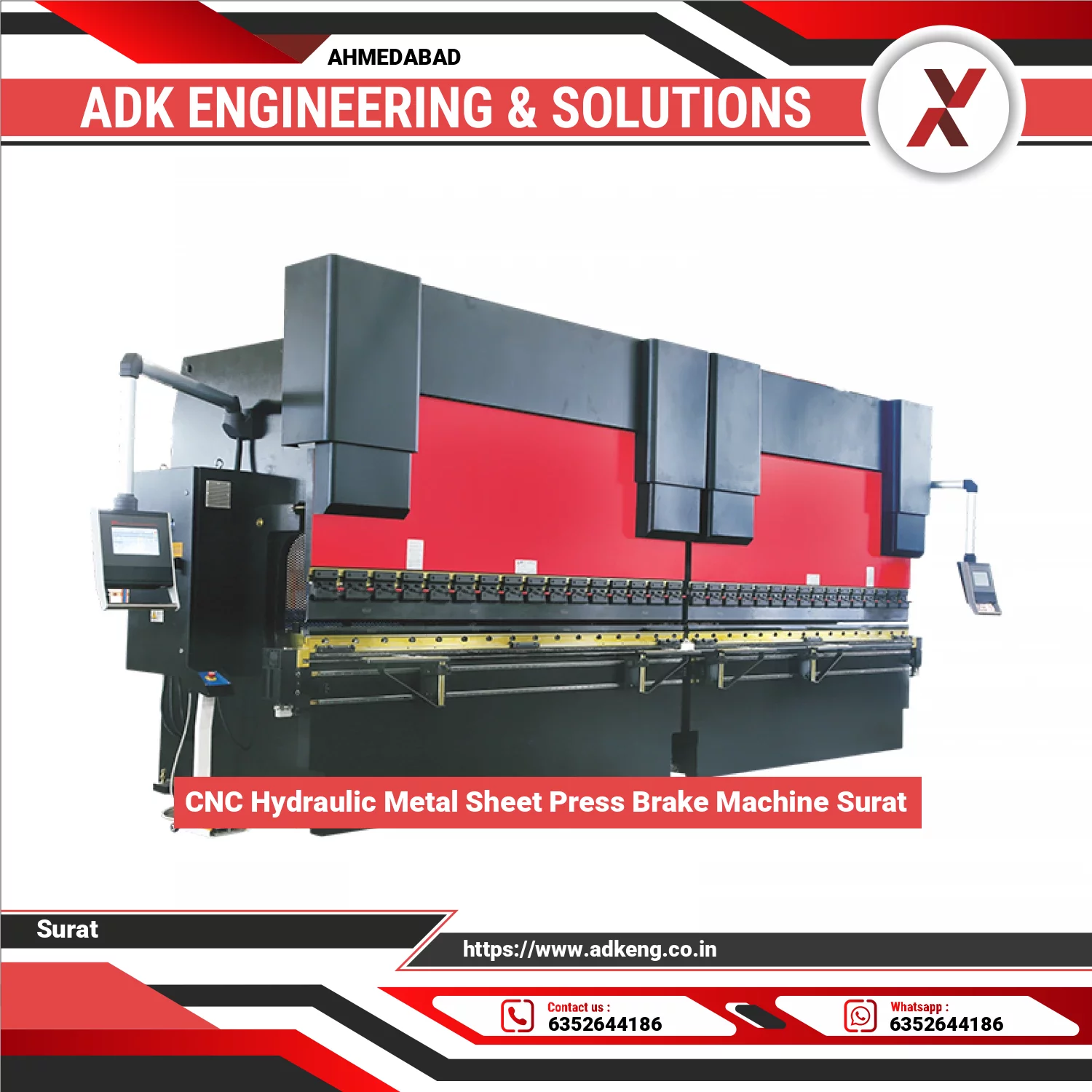

CNC Hydraulic Metal Sheet Press Brake Machine Surat

An In-Depth Industrial Analysis

Controlled forming procedures, accuracy, and repeatability are essential to modern metal fabrication. These CNC Hydraulic Press Brake machines stand at the centre of this ecosystem, enabling accurate bending of metal sheets for automotive components, electrical enclosures, structural frameworks, appliances, and heavy engineering assemblies. This long-form article presents a comprehensive, industry-focused explanation of CNC press brakes. These CNC hydraulic press brake machines combine computer numerical control with hydraulic power to achieve high-force, high-accuracy bending operations.

First Introduction to CNC Press Brake Science

We have evolved from manual operations to fully automated CNC-controlled systems. These machines are engineered to bend sheet metal along predefined angles and dimensions while maintaining consistency across high-volume production stages.

Primary Operative

CNC hydraulic press brake machines operate by applying hydraulic pressure to a ram that forces a punch into a die, bending the metal sheet placed between them. Its CNC control unit calculates ram depth, back gauge position, bending angle, and sequence based on programmed parameters.

Machine Structure and Construction

Structural integrity plays a critical role in press brake performance. These CNC hydraulic press brake machines are built using heavy-duty welded steel frames designed to resist deformation under high tonnage loads. Stress-relieved frames maintain alignment over long service life, even during continuous industrial use.

Specific engineering components include:

• Rigid side frames supporting hydraulic cylinders
• Precision-machined ram and bed surfaces
• Reinforced upper and lower beam assemblies
• High-strength back gauge support structures

This construction ensures parallelism between ram and bed, which is essential for uniform bending across the entire working length.

Systemic Design

The hydraulic system is the power source of the press brake. High-efficiency hydraulic pumps generate controlled oil pressure that drives the bending operation. Proportional valves regulate pressure and speed, allowing smooth approach, bending, and return strokes.

Oil cooling and filtration systems maintain temperature stability and protect internal components from contamination, extending system reliability, This is especially important for long-sheet bending applications.

Control systems manage:

1. Ram depth and speed control
2. Back gauge axis movement
3. Bend sequence optimization
4. Tool library management

Back Gauge System and Axis Configuration

The back gauge system determines sheet positioning before bending. CNC hydraulic press brakes typically feature multi-axis back gauges driven by servo motors and ball screws. Common axis configurations include X, R, Z1, and Z2, allowing precise positioning for various part geometries.

Tooling System and Compatibility

Tooling plays a decisive role in bending quality. CNC hydraulic press brakes support a wide range of punches and dies suitable for mild steel, stainless steel, aluminum, and high-strength alloys.

Standard tooling systems allow quick tool changes and compatibility with global tooling standards. Segmented tooling enables flexibility for different part lengths and profiles. Proper tool selection ensures clean bends, reduced surface marking, and longer tool life.

Energy Efficiency and Sustainability

These Variable displacement pumps and servo-hydraulic systems reduce power consumption during idle and low-load operations.

These improvements support sustainable manufacturing practices while reducing operational costs.

Customization and Machine Variants

These CNC hydraulic press brakes are available in multiple tonnage capacities, bending lengths, and axis configurations. Manufacturers can customize machines based on specific production needs, including sheet thickness, material type, and workspace layout.

Maintenance and Logistics, Installation,

Our Press brake machines are delivered with protective packaging suitable for domestic and international transport. Installation requires proper foundation preparation, electrical connection, and hydraulic commissioning.

Proper logistics planning minimizes transit damage and helps increase production readiness

Income and Objective Value

These Press brake technology still expands to evolve with advancements in servo-hydraulic systems, artificial intelligence-driven programming, and smart factory integration. Predictive maintenance, cloud-based monitoring, and digital twins are shaping the next generation of CNC press brakes.

Purposes of inventors, traders, and institutional buyers, these machines offer a balance of performance, reliability, and scalability. Rightfully selected, installed, and operated correctly, a CNC hydraulic press brake becomes more than a machine; it becomes a strategic logistical asset supporting efficiency, quality, and industrial expansion.
